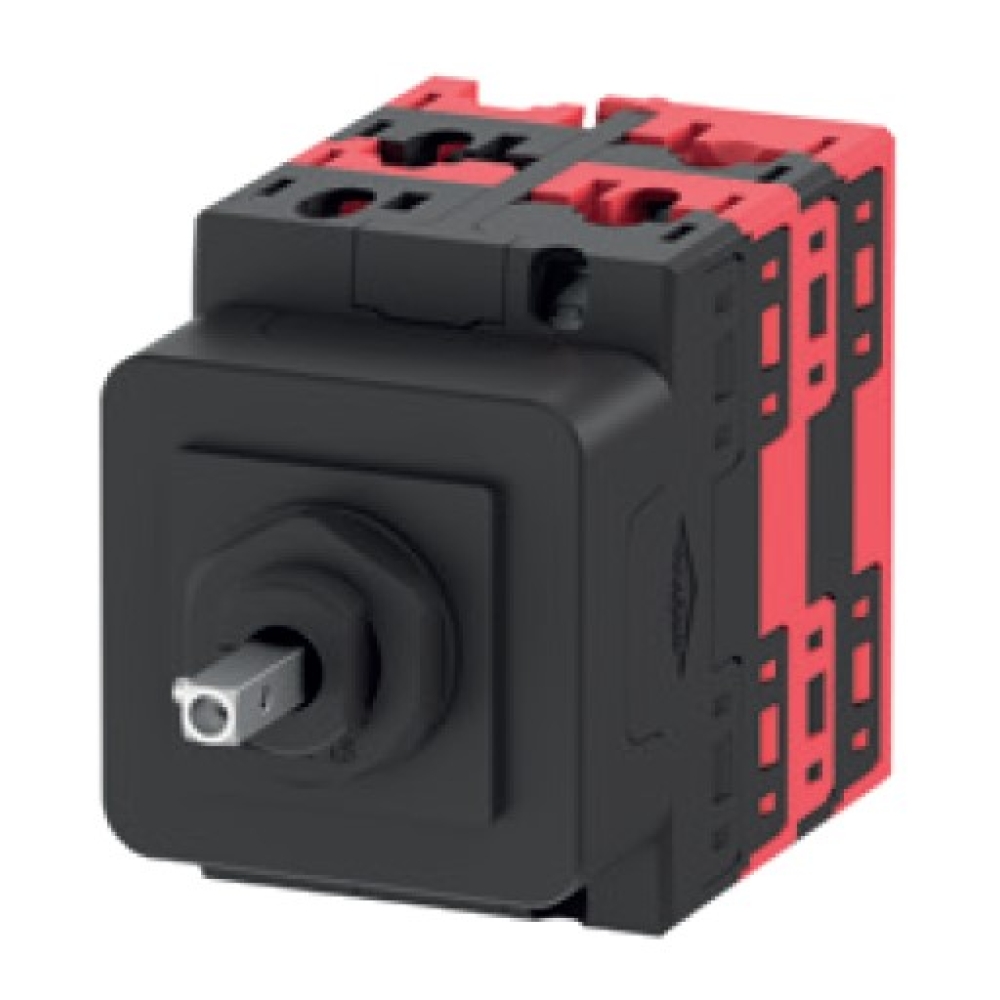

Technical specifications

Serie	DX
PV1 cat. per entry (rating 1)	1000 V - 40 A
PV1 cat. per entry (rating 2)	1500 V - 15 A
Elements n.	4
Poles	N. of poles 2x (1+1)
Fixing	Single hole M16
Code	DX1203022UALMKU6
