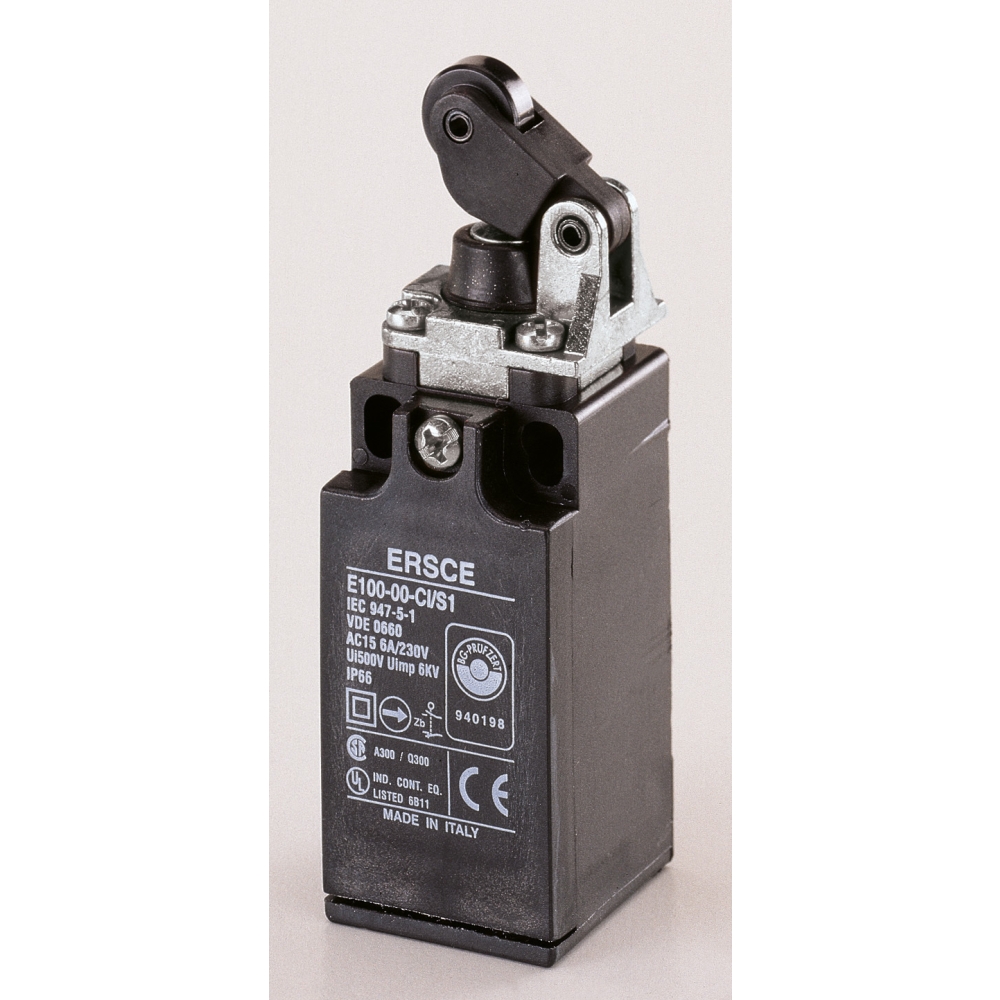

Technical specifications

Serie	E10
Rated insulation voltage	500V
Thermal rated current	10A
Cable entry	1 cable entry
Contact elements	1NO+1NC QUICK ACTION
Actuator type	LEVER WITH PLASTIC WHEEL AND BELLOWS, SIDE OPERATION
Material	PLASTIC BODY / PLASTIC HEAD
Use	Industrial Automation
Code	E10000CPS1

Documentation and downloads

Datasheet IT Datasheet EN 2D drawing 3D drawing Istructions Certifications Catalogue chapter REACH statement ROHS statement
