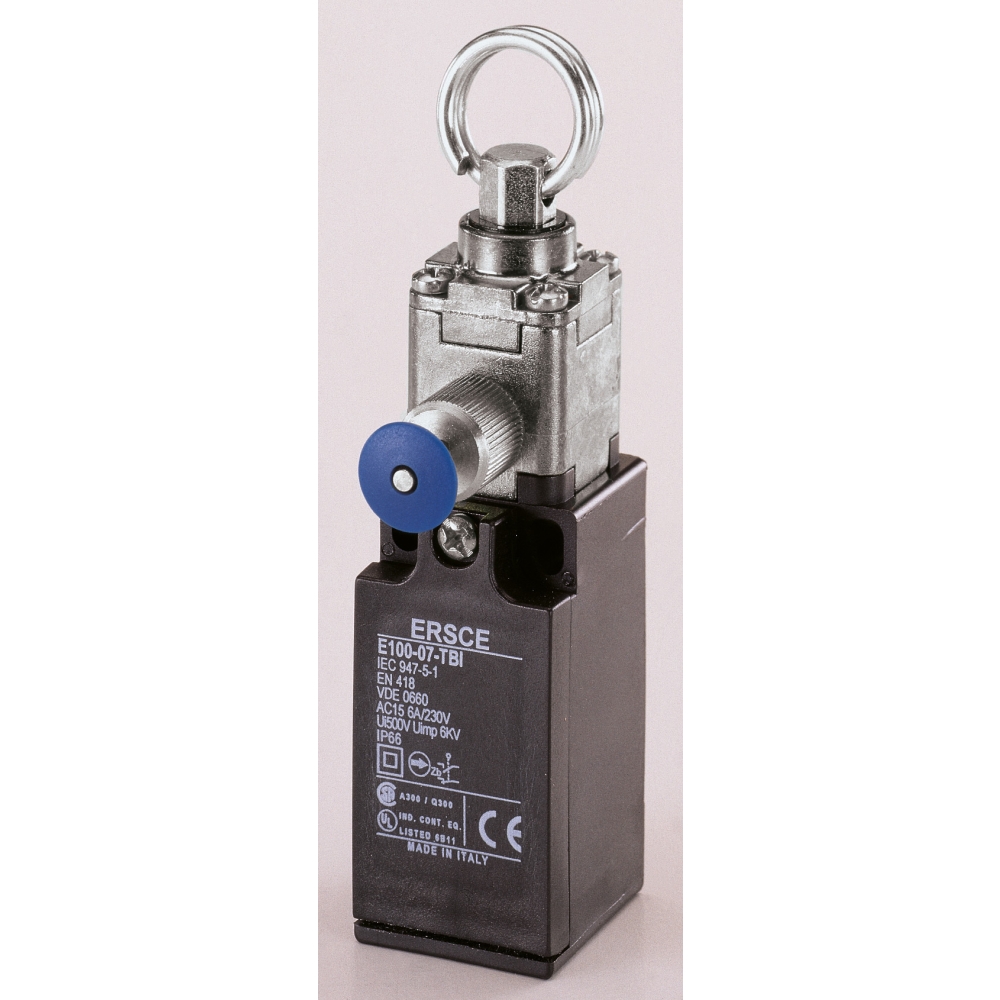

Technical specifications

Serie	E10
Rated insulation voltage	500V
Thermal rated current	10A
Cable entry	1 cable entry
Contact elements	2NC SLOW ACTION
Actuator type	BY ROPE
Material	PLASTIC BODY / METAL HEAD
Use	Industrial Automation
Code	E10008TBI

Documentation and downloads

Datasheet IT Datasheet EN 2D drawing 3D drawing Istructions Certifications Catalogue chapter REACH statement ROHS statement
