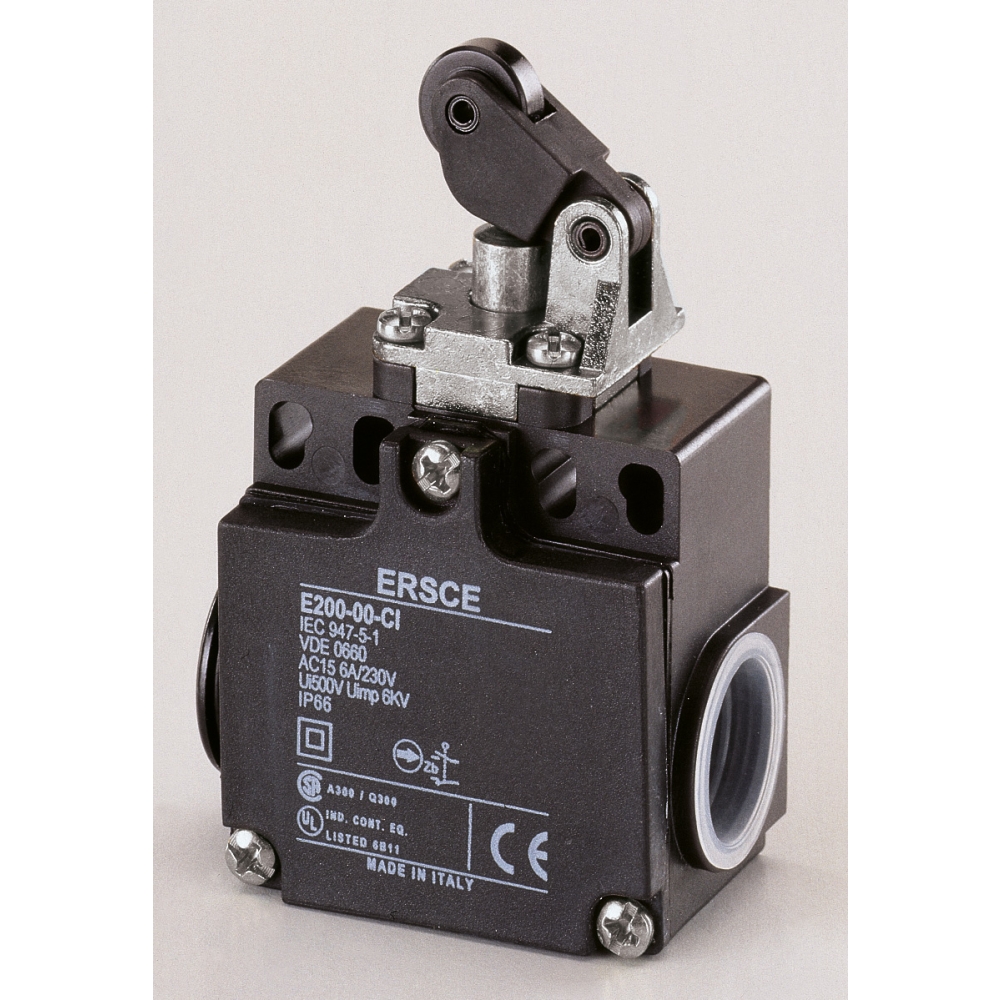

Technical specifications

Serie	E20
Rated insulation voltage	500V
Thermal rated current	10A
Cable entry	2 cable entries
Contact elements	1NO+1NC QUICK ACTION
Actuator type	LEVER WITH PLASTIC WHEEL, SIDE OPERATION
Material	PLASTIC BODY / METAL HEAD
Use	Industrial Automation
Code	E20000CI
