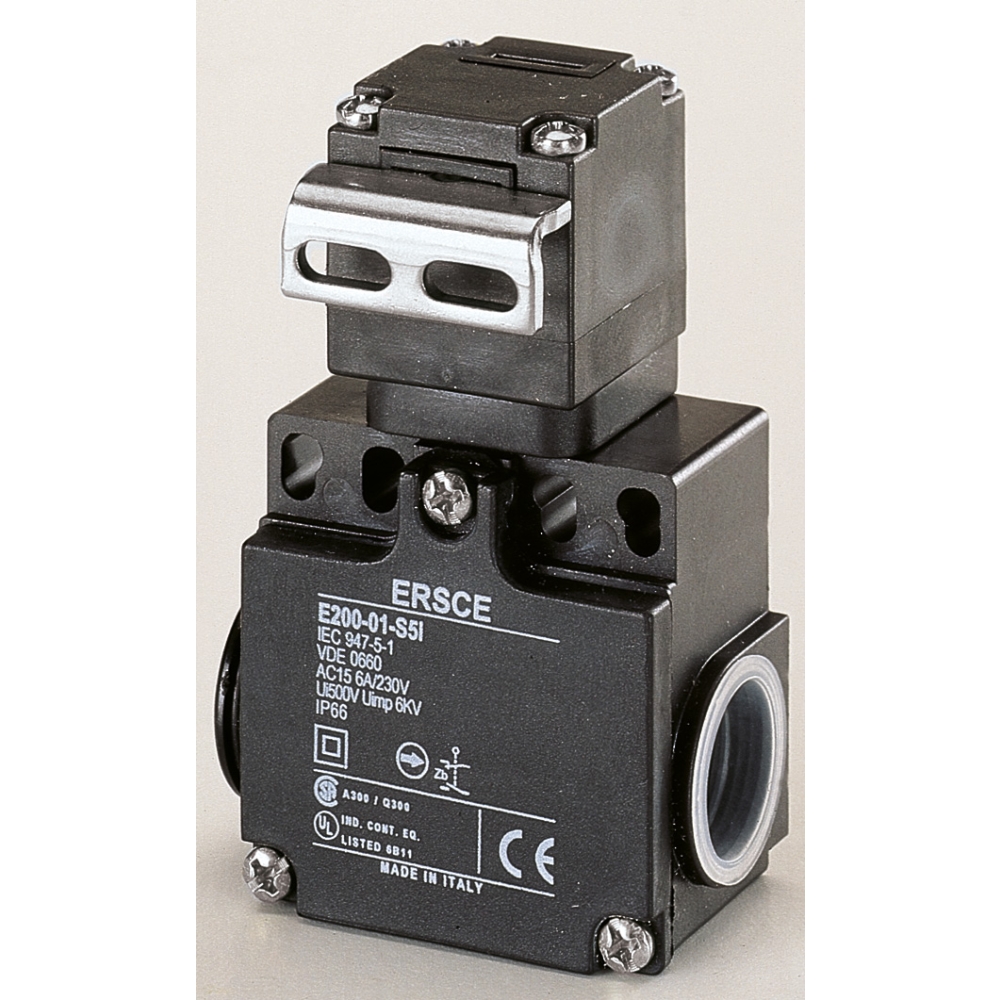

Technical specifications

Serie	E20
Rated insulation voltage	500V
Thermal rated current	10A
Cable entry	2 cable entries
Contact elements	2NC QUICK ACTION
Actuator type	5-WAY KEY
Material	PLASTIC BODY / PLASTIC HEAD
Use	Industrial Automation
Code	E20005S5I
