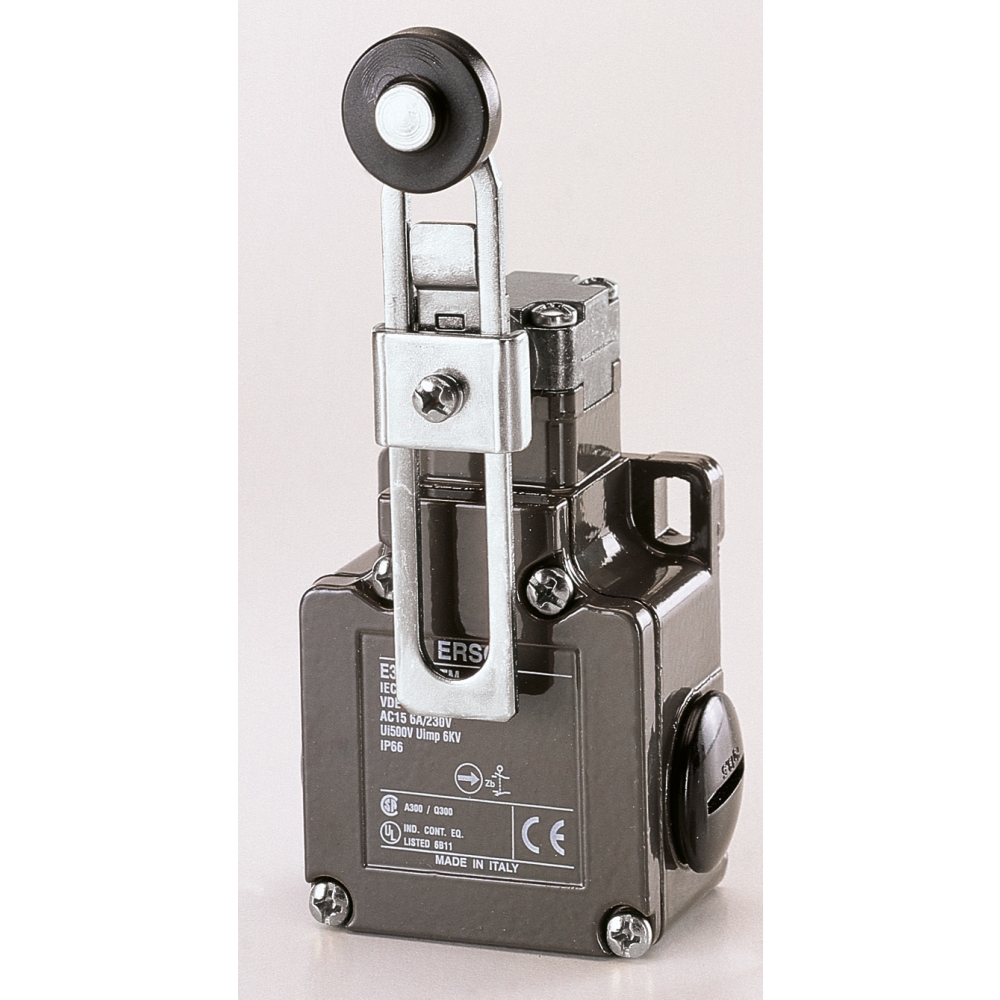

Technical specifications

Serie	E30
Rated insulation voltage	500V
Thermal rated current	10A
Cable entry	3 cable entries
Contact elements	1NO+1NC QUICK ACTION
Actuator type	VARIABLE LENGTH LEVER WITH PLASTIC WHEEL
Material	METAL BODY / METAL HEAD
Use	Industrial Automation
Code	E30000FM

Documentation and downloads

Datasheet IT Datasheet EN 2D drawing 3D drawing Istructions Certification 1 Catalogue chapter REACH statement ROHS statement
