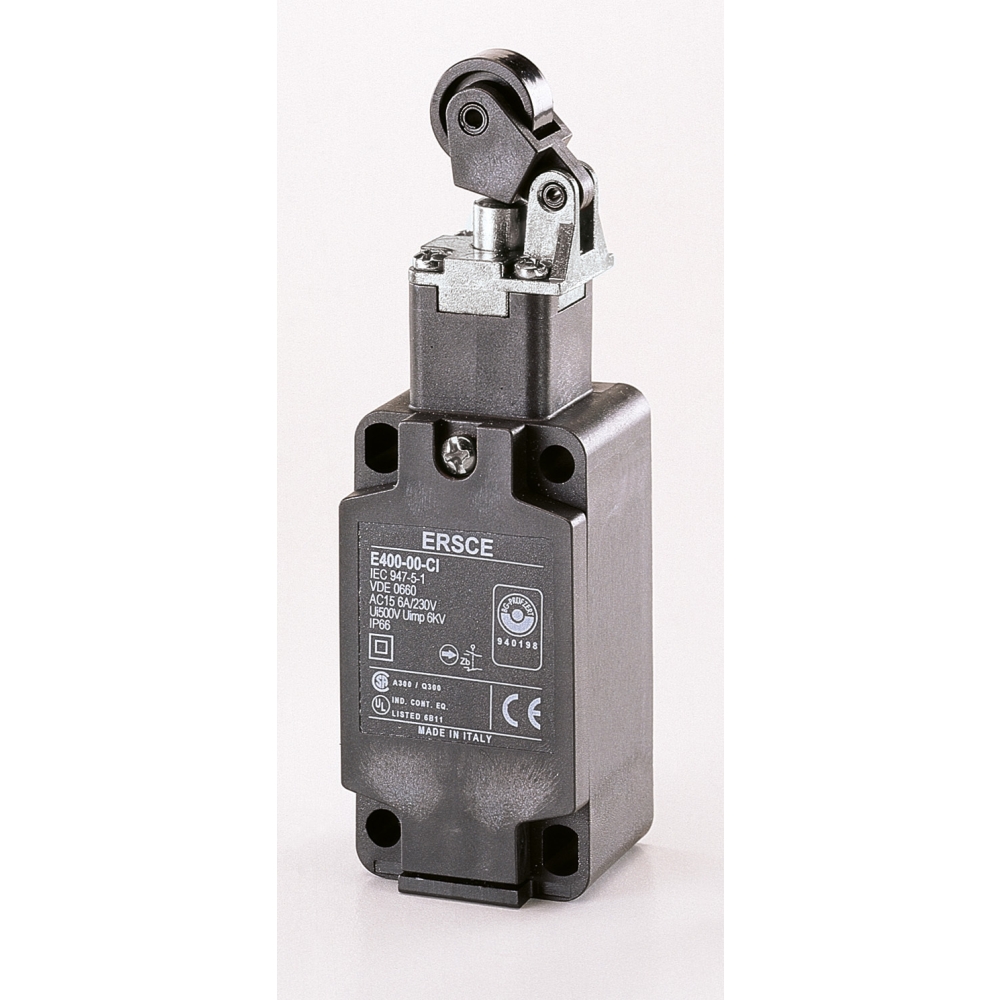

Technical specifications

Serie	E40
Rated insulation voltage	500V
Thermal rated current	10A
Cable entry	1 cable entry
Contact elements	1NO+1NC QUICK ACTION
Actuator type	LEVER WITH PLASTIC WHEEL, SIDE OPERATION
Material	METAL BODY / METAL HEAD
Use	Industrial Automation
Code	E40000CM

Documentation and downloads

Datasheet IT Datasheet EN 2D drawing 3D drawing Istructions Certifications Catalogue chapter REACH statement ROHS statement
