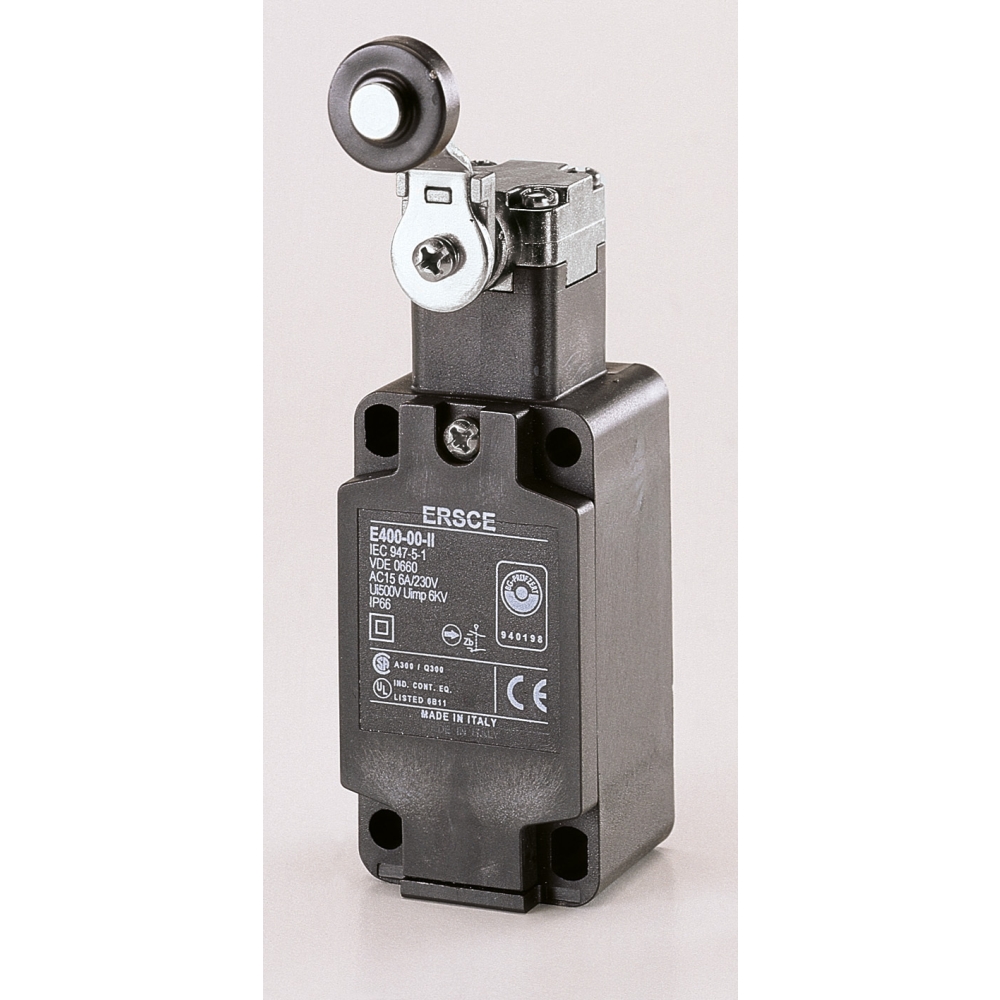

Technical specifications

Serie	E40
Rated insulation voltage	500V
Thermal rated current	10A
Cable entry	1 cable entry
Contact elements	1NO+1NC QUICK ACTION
Actuator type	BENT LEVER WITH PLASTIC WHEEL
Material	PLASTIC BODY / METAL HEAD
Use	Industrial Automation
Code	E40000II
